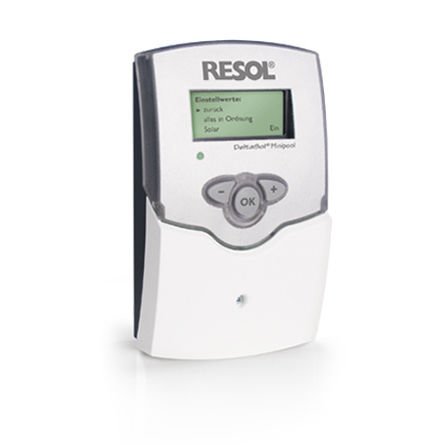

Controller for solar swimming pool heating DeltaSol® Minipool
The DeltaSol® Minipool is a controller for heating a swimming pool by means of solar collectors and optimised operation of the filter system. Furthermore, the controller has many additional pool functions such as: maximum limitation of flow temperature, pool cooling function and a flushing function. The DeltaSol® Minipool can easily be connected to other modules via the VBus®.
Inputs: 4 Pt1000 temperature sensors
Outputs: 2 semiconductor relays
Switching capacity: 0.5 (0.5) A 240 V~ (semiconductor relay)
Total switching capacity: 0.8 A 240 V~
Power supply: 220 … 240 V~ (50 … 60 Hz)
Supply connection: type Y attachment
Power consumption: ca. 2 W
Standby: 2,98 W
Mode of operation: type 1.C.Y action
Rated impulse voltage: 2.5 kV
Data interface: RESOL VBus®
VBus® current supply: 30 mA
Functions: controller for heating a swimming pool by means of solar collectors and optimised operation of the filter system.
Housing: plastic, PC-ABS and PMMA
Mounting: wall mounting, mounting into patch panels is possible
Indication/Display: graphic display, 160 x 64 pixels
Operation: 3 pushbuttons at the front
Ingress protection: IP 20 / IEC 60529
Protection class: I
Ambient temperature: 0 … 40 °C
Pollution degree: 2
Dimensions: 172 x 110 x 49 mm
controller for heating a swimming pool by means of solar collectors
and optimised operation of the filter system
4 sensor inputs and 2 relay outputs
Filter runtime monitoring
Maximum flow temperature limitation
Cooling function
Collector emergency shutdown
Heat quantity measurement
Operating hours counter
