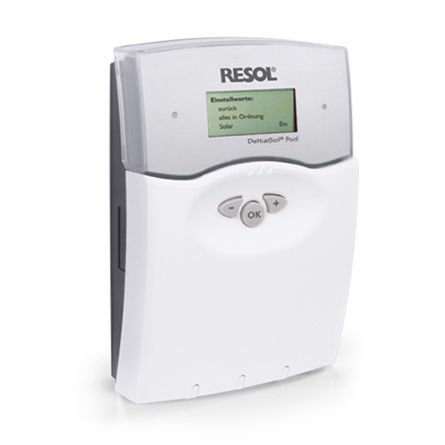

Controller for solar swimming pool heating DeltaSol® Pool
The DeltaSol® Pool is a controller for heating a swimming pool by means of solar collectors and optimized operation of the filter system. Backup heating of the swimming pool is varied according to solar power and pool demand, thus saving expensive energy. Furthermore, the controller has many additional pool functions such as additional filter runtime, maximum limitation of flow temperature, and a flushing function.
Heating and swimming pool controller for swimming pool heating
Inputs: 10 sensor inputs for Pt1000, 1 x CS10, 1 x impulse and 1 digital input
Outputs: 7 relay outputs, 1 of them floating
Switching capacity:
1 (1) A 240 V~ (standard relay)
2 (1) A 24V=/240V~ (potential-free relay)
Total switching capacity: 4 A 240 V~
Power supply: 100 – 240 V~ (50 – 60 Hz)
Supply connection: type Y attachment
Power consumption: < 2 W
Standby: 1,83 W
Mode of operation: type 1.B.C.Y action
Rated impulse voltage: 2.5 kV
Data interface: RESOL VBus®
VBus® current supply: 30 mA
Functions: controller for heating a swimming pool by means of solar collectors and optimised operation of the filter system. Add-on backup heating of the swimming pool depending on the need and on the power of the solar collectors.
Housing: plastic, PC-ABS, and PMMA
Mounting: wall mounting, mounting into patch panels is possible
Indication/Display: 4-line LC-text display
Operation: 3 push buttons at the front of the housing
Ingress protection: IP 20 / IEC 60529
Protection class: II
Ambient temperature: 0 ... 40 °C
Pollution degree: 2
Dimensions: 156 x 227 x 62 mm
Solar operating hours counter and heat quantity measurement
Integrated after heating demand
10 sensor inputs and 7 relay outputs
Filter runtime and pump monitoring, flushing function
Maximum flow temperature limitation, cooling function, collector emergency shutdow
