DeltaSol CS – CS Plus

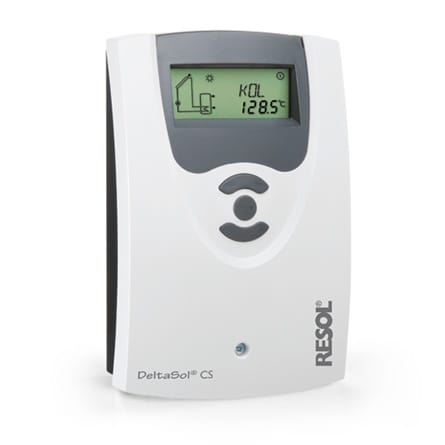

Solar controller DeltaSol CS
The DeltaSol CS/2 and CS/4 controllers are used for speed control of a HE pump in small standard solar thermal and heating systems. They are equipped with a PWM output as well as with an input for a VFD Grundfos Direct Sensor™ which enables precise heat quantity measurement. The commissioning menu ensures an easy and quick configuration.
Solar controller DeltaSol CS Plus
The DeltaSol CS Plus has been especially developed for the speed control of high-efficiency pumps in standard solar and heating systems. It is equipped with two PWM outputs and an additional input for a VFD Grundfos Direct Sensor™ that enables a precise heat quantity measurement. The commissioning menu will lead you through the most important adjustments for the initial configuration in only eight steps.
• For the speed control of high-efficiency pumps
• 1 input for a VFD Grundfos Direct Sensor™
• Heat quantity measurement
• Commissioning menu
• 3 basic system layouts to choose from (DeltaSol CS/4 only)
• Function control
• Tube collector function, thermal disinfection (DeltaSol CS/4 only)
• Drainback option
• Unit °C and °F selectable
Max. number of collector fields: 1 [CS], 2 [CS Plus]
Max. number of stores: 1 [CS], 2 [CS Plus]
Inputs: 4 temperature sensors Pt1000, 1 VFD Grundfos Direct Sensor™
Outputs: 1 semiconductor relay, 1 PWM output (DeltaSol CS/2), 2 semiconductor relays, 1 PWM output (DeltaSol CS/4), 2 semiconductor relay, 2 PWM output (DeltaSol CS Plus),
Dimensions: 172 x 110 x 46 mm
Solar thermall systems for DHW heating, building heating, pool heating, etc.
