FlowSol B – B HE

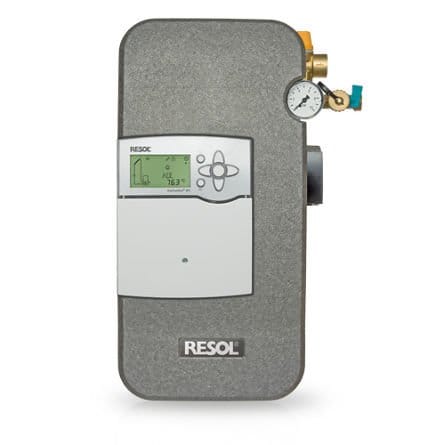

FlowSol B – solar station
The FlowSol B is a pre-assembled twin-line pump station and contains all the vital hydraulic components for operating a solar thermal system and is particularly easy to install. The pump station is available in many combinations with three different controller series and two different pump variants.
FlowSol B HE – solar station
The FlowSol B HE is a pre-assembled twin-line pump station and contains all the vital hydraulic components for operating a solar thermal system and is particularly easy to install. The pump station is available in many combinations with three different controller series and two different pump variants.
• Pre-assembled twin-line pump station
• Integrated controller of choice from the DeltaSol® BX, DeltaSol® CS or DeltaSol® SL series
• Design insulation casing
• Innovative hinged controller panel for quick and easy access to the hydraulic components
• Safety assembly with connection for the diaphragm-type expansion vessel, safety valve and pressure gauge
• Fill and drain valves
• Wall mounting bracket with mounting material
• Air separator with manual air vent for the solar thermal system
• Especially suited for the pump station: our accessories such as the ALS15 discharge hose, the SBS 2000 filling and flushing station, etc.
Circulation pump FlowSol B: Wilo ST 15/6 ECO, 15/7 ECO (surcharge)
Circulation pump FlowSol B HE: Wilo PARA ST 15/7.0-PWM2 (Maximum power consumption: 45 W)
Safety valve: 6 bar
Pressure gauge: 0 … 10 bar
Flowmeter: 1 … 13 l/min
Non-return valves: opening pressure 20 mbar, openable
Connection to diaphragm-type expansion vessel: 3/4″ ET, flat sealing
Outlet safety valve: 3/4″ IT
Connections to the solar pipes: 3/4″ IT
Maximum temperature flow/return: 120 °C/95 °C
Maximum pressure: 6 bar
Fluid: water with max. 50 % glycol
Dimensions:
approx. 481 × 320 × 190 mm (with insulation)
distance centres: 100 mm
distance centre/wall: 67 mm
Material: fittings: brass
sealings: EPDM/AFM 34
insulation: EPP foam
Flow rate: 1 … 10 l/min
Non-return valve: 200 mm head, openable
Solar thermall systems for DHW heating, building heating, pool heating, etc.
