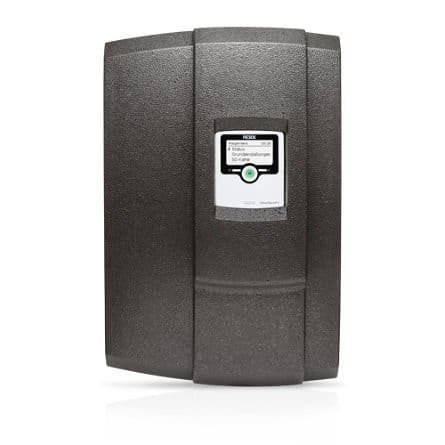

FlowSol® E electrothermal station
The RESOL FlowSol® E has been especially designed for using excess power produced by PV systems. The sensor module reliably detects excess current and the integrated controller redirects it to a steplessly variable electric heater for heating a water store. Thus, excess power can be stored as regenerative heat, internal consumption can be increased while decreasing conventional heating costs.
incl. DeltaTherm® E, power unit and sensor module
- Integrated high-efficiency pump and DeltaTherm® E controller
- Integrated electric heater of up to 3 kW, stepless variable and grid compliant
- Can be easily fitted to all heating systems
- Reliable household power priority
- Backup heating demand (optional)
- Backup heating with mains current (optional)
Station
Circulation pump:
Wilo PARA 15/7.0-PWM2
(power consumption of the pump: 3 … 45 W)
Safety valve: 3 bar
Power supply: 220 … 240 V~ (50 … 60 Hz)
Cable cross section required: 2,5 mm²
Heater: 0,8 kW / 0,8 kW / 1,4 kW
Maximum temperature flow/return: 95 °C
Maximum pressure: 3 bar
Fluid: heating water
Dimensions: approx. 605 x 400 x 240 mm (with insulation)
distance centre / wall: 76 mm
Weight: 14 kg
Material:
fittings: brass
seals: EPDM
insulation: EPP foam
Connections: Rp ¾“ IG
Nominal power: 0 … 3 kW (13 A)
Controller
Inputs: 4 Pt1000 temperature sensors, 2 digital switching inputs
Outputs: 3 semiconductor relays, 1 potential-free extra-low voltage relay, 1 PWM output
Switching capacity:
1 (1) A 240 V~ (semiconductor relay)
1 (1) A 30 V= (potential-free relay)
Total switching capacity: 3 A 240 V~
Power supply: 100 – 240V~ (50 – 60 Hz)
Supply connection: type X attachment
Standby: 0.89 W
Mode of operation: type 1.B.C.Y action
Rated impulse voltage: 2,5 kV
Data interface: VBus®, MicroSD card slot
VBus® current supply: 60 mA
Housing: plastic, PC-ABS and PMMA
Indication/Display: full graphic display, operating control LED (Lightwheel®) and background illumination
Operation: 2 push buttons and 1 adjustment dial (Lightwheel®)
Ingress protection: IP 20 / DIN EN 60529
Protection class: I
Ambient temperature: 0 … 40 °C
Pollution degree: 2
Dimensions: 110 x 166 x 47 mm
