HE-Check

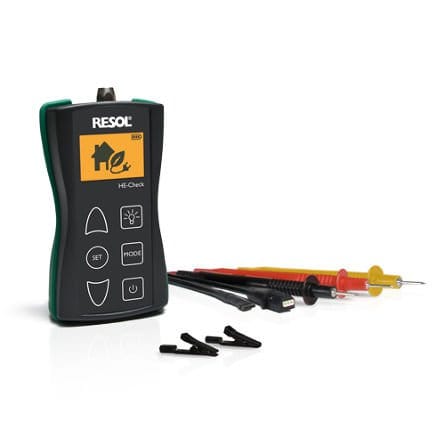

The HE-Check takes over where conventional tools fail – at the question of whether a malfunction is caused by a pump fault or the controller signal. With the HE-Check, the function of the pump and the signals of the controller can be checked quickly and easily. The testing device measures and generates 0-10 V pump control signals as well as PWM signals in a frequency range from 40 up to 2000 Hz. For testing bidirectional pumps, PWM signals can also be generated and measured simultaneously. Additionally, the device will indicate the pump status or the flow rate respectively. The HE-Check comes with a versatile set of measuring and signal cables for different pumps and controllers. The practical storage bag and the robust housing make the HE-Check ideal for daily application.
Testing device for PWM and 0-10 V signals
Intuitive operating concept
Ergonomic design
Easy fault diagnostics
Including different measuring cables
Inputs: PWM / 0-10 V
Outputs: PWM / 0-10 V
PWM frequency: 40 … 2000 Hz
Power supply: 3 type AAA batteries (included), typical battery life: 2 years
Functions: measuring and generating a PWM or 0-10 V signal
Housing: plastic, ABS and TPE
Indication/Display: full graphic display
Operation: 6 push buttons at the front
Ingress protection: IP 54 / DIN EN 60529
Safety: 18 V class I / EN 61010
Ambient temperature: 0 … 40 °C
Pollution degree: 2
Dimensions: 120 x 65 x 27 mm
Measuring range: 0 … 15 V
