RLGHE

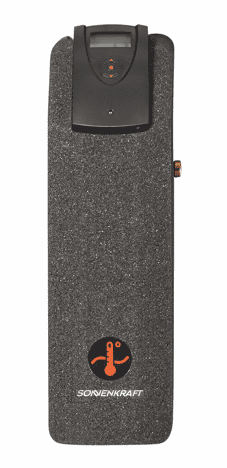

RLGHE – solar station
The RLGHE pump station is a single-line pump station and is used in the solar return. The RLGHE is equipped with a high efficiency pump and STRGO controller. The pump station is pre-assembled and contains all the vital hydraulic components for operating a solar thermal system and is particularly easy to install.
Brand:
- Cutting-edge and compact design
- User-friendly controller with preset solar schemas
- RLGHE pre-fitted on the DHWPR2 storage tank
- Circulation pump: Wilo PARA ST 15/7.0-PWM2 (Maximum power consumption: 45 W)
- Safety valve: max. 6 bar
- Pressure gauge: 0 … 10 bar
- Flowmeter: 1 … 13 l/min
- Non-return valves: 1 pc, openable
- Connection to diaphragm-type expansion vessel: 3/4” IT, flat sealing
- Outlet safety valve: 3/4″ IT
- Connections to the solar pipes: 3/4″ IT
- Maximum pressure: max. 6 bar
- Fluid: Water with max. 50 % propylene glycol
- Dimensions: approx. 600 x 180 x 200 mm (with insulation)
- Maximum temperature: +140 °C
