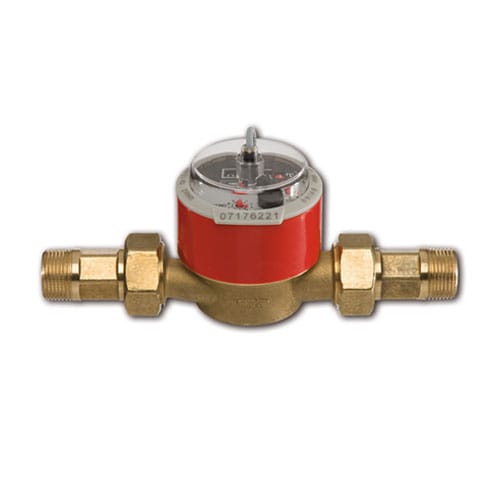

V40 Flowmeter|V40

TypeV40-15V40-25V40-35V40-60V40-100V40-150
Product version112222
Impulse ratel/Imp12525252525
Nominal widthDN202025254050
Connecting thread at the counterG…BZoll111 ¼1 ¼22 3/8
Connecting thread at the screw jointR…Zoll¾¾111 ½2
Max. operating pressurePmaxbar161616161616
Max. operating temperatureTmax°C120120130130130130
Nominal flow rateQnm3/h1,52,53,561015
Max. flow rateQmaxm3/h357122030
Insulation limitQtl/h1202002804808001200
Min. flow rate horizontalQminl/h305070120200300
Min. flow rate verticalQminl/h60100
Brand:
V40_500x500
V40_500x500

Note:
Version 1 is suitable for horizontal as well as vertical mounting.

Version 2 is for horizontal mounting only.
